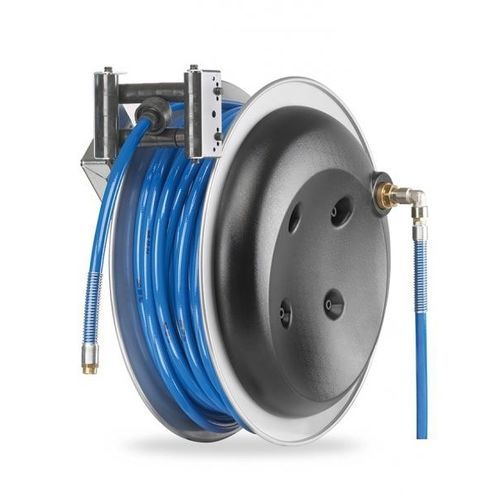

Hose reel YS600
for waterfor airself-retracting

Hose reel - YS600 - CABLE EQUIPEMENTS - for water / for air / self-retracting

Add to favorites

Compare this product

Go to the CABLE EQUIPEMENTS website for more information

Characteristics

Type: hose
Applications: for water, for air
Drive mechanism: self-retracting
Configuration: fixed
Reel material: steel, aluminum
Hose/cable length: 10 m, 17 m, 32 m, 47 m
(32'09" , 55'09" , 104'11" , 154'02" )
Diameter: 8 mm, 10 mm, 12.5 mm, 19 mm, 25 mm
(0.31 in, 0.39 in, 0.49 in, 0.75 in, 0.98 in)
Pressure: 10 bar, 20 bar
(145 psi, 290.1 psi)

Description

Depending on the models : Suitable for air and water. Max pressure from 10 to 20 bar Length : without pipe or from 8 to 20 meters Inner Ø of the pipe : from 8 à 25 mm (from 5/16’’ to 1’’) Operating temperature : from -5°C to +50°C Pipe type : KPU ou PVC Case in aluminum and varnished steel Optional fixed flange Stop pawl (removable) Cable guide For mechanized use, not suitable for manual use.
