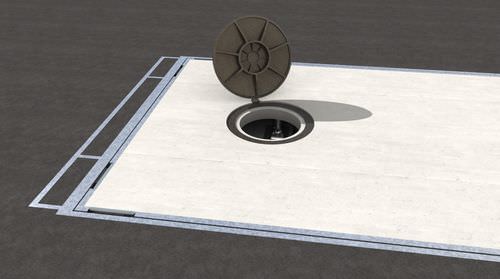

Concrete weighbridge SCP

for vehiclesfor trucks

Concrete weighbridge pre-assembled from precast concrete parts of high quality, for freezing or corrosive environments, up to 80 t General Description Weighbridge extremely robust, designed for the most extreme uses. Comprising foundation and concrete board, SCP is placed on a bed of sand prepared by the customer and takes less than one day to become operational Applications Specially designed for weighing operations in frigid environments where the temperature can damage the whole structure of the tray. It is also suitable for intensive use in harsh environments – chemical industry, seaports – and for weighing products with high corrosive power Compatibility with other equipment Compatible with the full range of Diade smart terminals Characteristics -Robust modular Reinforced concrete structure -Vibrated prefabricated concrete weighbridge RCK45 -Conrete reinforced wih polypropylene -Convex surface for water drainage -Low installation depth -Inspection caps made of cast iron, road type, for easy access to load cells or cleaning and maintenance operations -Load cells oscillating supports in stainless steel to avoid any cause of damage due to transversal forces -Galvanised protectors provide additional protection for the load cell assemblies -Proprietary load cell surge protection device -Junction box to connect the load cells complete with overvoltage electronic protection circuit, stainless steel IP68 enclosure -Pit mounted version Load cells High-resolution digital load cells CPD-M, ensure high performance under the toughest weighing applications.
