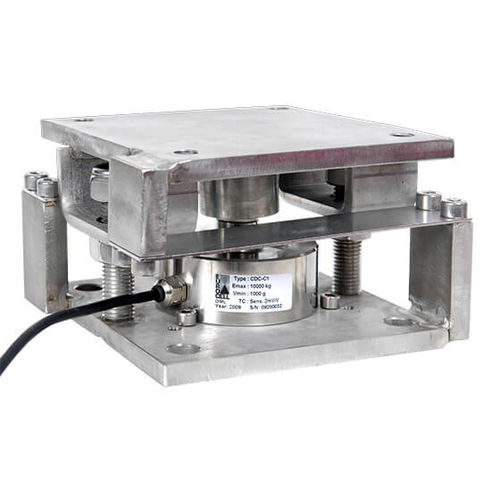

ATEX weigh module GPA-CDC

galvanized

Compact weighing system with easy installation, for structures up to 100 t General Description Load cell model CDC, mechanical accessories for settling and / or thermal expansion compensation, overload protection Applications Weighing system for application in silos, tegons, tanks and vessels Compatibility with other equipment Compatible with the full range of intelligent terminals DIADE series Characteristics -Galvanized structure -Mechanical options for settling and / or thermal expansion compensation -Overload protection -Accuracy class: 4000 -Maximum power: 18 Vac / Vdc -Sensitivity: 2 +/- 0.1 mV / V -Input Impedance: 700 – 710 Ω -Output Impedance: 700 – 702 Ω -Maximum overload: 150% Legislation Approved versions for commercial transactions and versions for internal control in compliance with Directive 2014/31/UE Options -ATEX version -Sampling group -Cell cable from 3 up to 15 m Capacities 500 kg, 1000 kg, 2500 kg, 5000 kg, 10 t, 20 t, 50 t, 100 t
