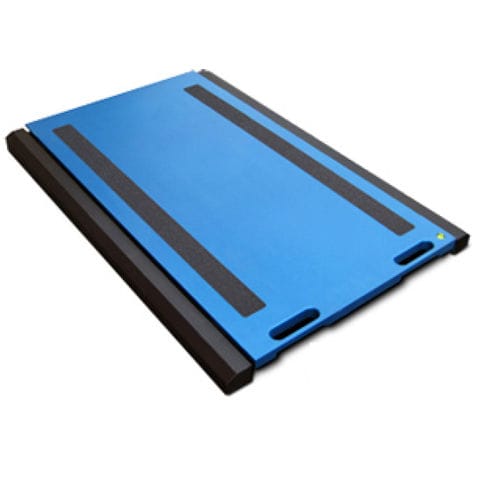

Vehicle wheel scale PRD

portable

Specific system for static axle weighing, consisting of portable weighing platforms for wheels and for terminal with integrated printer General Description Weigh-wheel system consisting of two or more weighing platforms, and a terminal with printer. Portable weighing platforms, unit scope up to 25,000 kg, high strength aluminum frame with 6 load cells each platform, equipped with radio weight transmission to the weighing terminal and with model approval Applications Platforms designed to create a weighing station for smaller, medium and large vehicles (depending on platform size) Characteristics -Robust structure, made with a special aluminum that ensures the perfect operation in adverse conditions and the lightness so that it can be transported -Rolling platforms for easy transport -10 m cable for connection to the weighing terminal -Stainless steel cells, IP68 -Hermetically sealed junction box, IP68 -Special anti-slip rubber applied under the platform, to ensure good adhesion to the floor and avoid displacement -ABS terminal, with touch screen 120 × 90 mm -Rechargeable Battery (up to 10h) -Multilingual software -Total weight, weight per axle and weight per wheel -Tara -Management of 500 customer codes Legislation Approved versions for commercial transactions in compliance with Directive 2014/31/UE Options -Number of platforms: 2, 4 or 6 -Touch screen -Letter with 2 inputs and 2 outputs -Letter with analog output (0-10V, 0-20mA) -Remote control via IR or radio frequency -Calibration -Conformity Assessment Capacities 600 kg, 1500 kg, 3000 kg, 6000 kg, 8000 kg, 10000 kg, 12000 kg, 15000 kg, 20000 kg, 25000 kg
