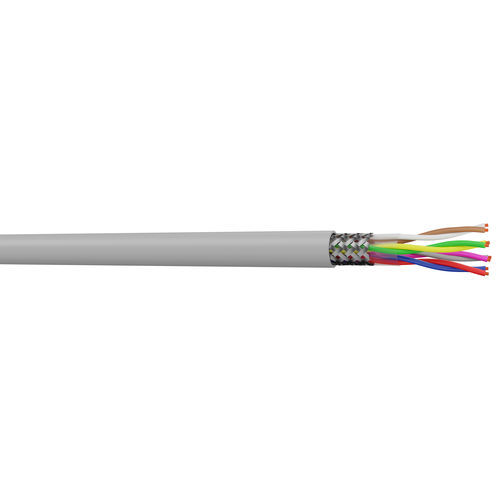

Data electrical cable HIFLEX CY PDINflame-retardantarmored
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN
- Protection
- flame-retardant, armored
- Configuration
- paired, LIYY type
- Core material
- copper
- Applications
- control
- Material of the insulation
- PVC-sheathed
- Color of the insolation
- gray
- Norms
- IEC
- Nominal voltage
300 V, 500 V
- Temperature
Max.: 70 °C
(158 °F)Min.: -30 °C
(-22 °F)- Cross-section
0.25 mm², 0.34 mm², 0.5 mm², 0.75 mm², 1 mm²
(0 in², 0 in², 0 in², 0 in², 0 in²)
Description
data transmission cable, control and connecting cable predominantly for transmission
of analog and digital signals in process controlled facilities in measurement and control
technology for lossless transmission of data and signals. For fixed laying and flexible
applications with undefined cable routing and without tensile stress.
conform to RoHS
conductor material bare copper strand
conductor class acc. to IEC 60228 cl. 5
excepted 0.34mm² (7x0.25
core insulation PVC
core identification acc. to DIN 47100
stranding 2 cores twisted to a pair
overall shield copper braid tinned
coverage approx. 75%
outer sheath PVC
sheath colour grey
