Meteorology thermo-hygrometer THS
without displayfixedtemperature

Meteorology thermo-hygrometer - THS - CAE S.p.A. - without display / fixed / temperature
Meteorology thermo-hygrometer - THS - CAE S.p.A. - without display / fixed / temperature
Meteorology thermo-hygrometer - THS - CAE S.p.A. - without display / fixed / temperature - image - 2
Add to favorites
Compare this product


Characteristics

Applications
meteorology
Display
without display
Configuration
fixed
Measured value
temperature, relative humidity
Other characteristics
rugged, for harsh environments, high-accuracy
Temperature

Max.: 100 °C
(212 °F)

Min.: -50 °C
(-58 °F)

Relative humidity

Max.: 100 %

Min.: 0 %

Description

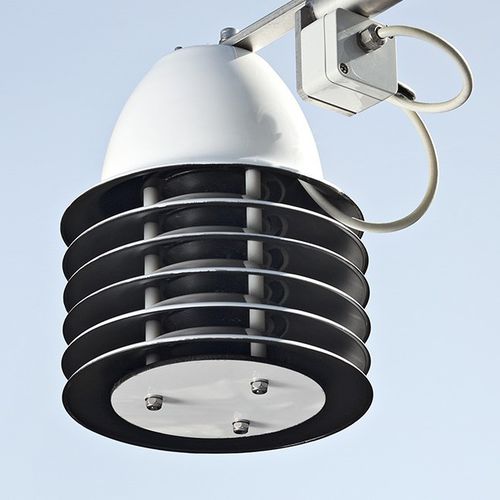

The THS thermo-hygrometer is a fully electronic sensor, composed of both a thermometer and a hygrometer for measuring temperature and air humidity. The two sensors that make up the meter are respectively a PT100 class A thermometer of superior quality and a hygrometer whose sensitive element is a capacitor with a thin film polymer dielectrics, with an electric capacity that varies in proportion to the relative humidity. The containment structure is made up of 6 ABS dishes. It is designed to protect the sensor from wearing, caused by solar radiation, and to grant adequate ventilation, so that the detection is not distorted by overheating of the components. The low surface protection is painted black to improve the accuracy of the sensor in environments with light reflecting from below, such as in snowy conditions.
