Power supply unit A453x

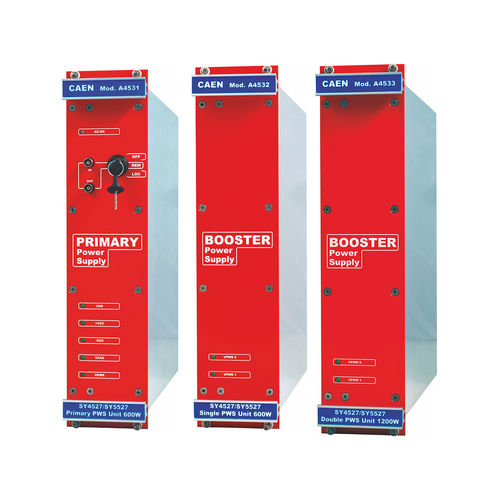

The Power Supply Unit (PSU) is available in three versions: Primary, Optional Single and Optional Double. The Primary PSU (A4531) is the standard SYx527 power supply block. It includes the SERVICE and 600 WPSU within a single slot module. Each SY4527/SY5527 includes one A4531 Primary Power Supply. The Optional Single PSU provides an additional 600W of power in a single slot module. The Optional Double PSU provides an additional 1200W of power in a single slot module. The Power Supply Unit (PSU) is also available in three versions: Primary, Optional Single, Optional Double. The Primary PSU (A4531) is the standard SY527 power supply clock. It includes the SERVICE and 600W PSU within a single slot module. Each SY4527/SY5527 includes one A4531 Primary Power Supply. Note that the PSU will be providing power to the boards installed into the mainframe as well as to the motherboard control electronics (CPU). When configuring the SYx527 power output customers should take this factor into consideration. For some applications, especially those which include Low Voltage/High Amperage boards, the power requirement must be carefully considered to avoid failures and maximum component life expectancy. For configuration questions or concerns we recommend that you contact your CAEN representative and/or technical support. The Optional Single PSU provides an additional 600W of power in a single slot module. The Optional Double PSU provides an additional 1200W of power in a single slot module.
