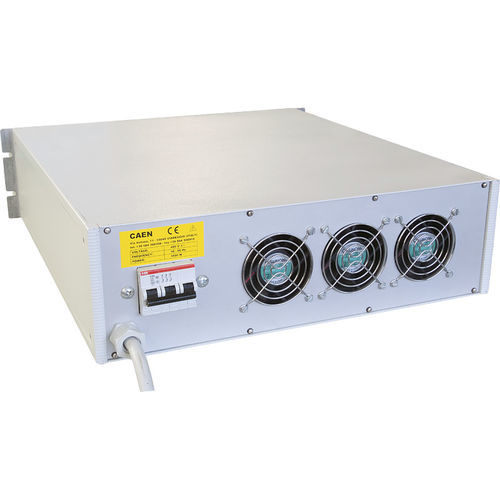

Industrial AC/DC converter A3484

3U 19” Euro Rack, 50 cm deep 2.5 kW 48V output 48V ± 10% output dynamics (remotely programmable) 50 A maximum output current Overcurrent protection Voltage ripple smaller than 100 mV peak-to-peak Local inhibit function Overview The Mod. A3484 is a 220/400 Vac – 48 Vdc converter, which allows to integrate into the EASY channels control also the management of the 48 V power supplies. Features include local or remote control (Mod. A3484S only), overload protection and local or remote inhibit function. The module front panel houses LEDs and channels monitor signals. Technical Specifications Output Polarity - Positive Voltage - 44 ÷ 52 V adjustable via software Max. Output Power - 2.5 kW Voltage Ripple - < 100 mV pp AC input - 3-phase 400 V /400 Hz Packaging - 19″-wide, 3U-high Euro-mechanics rack; Depth: 50 cm.
