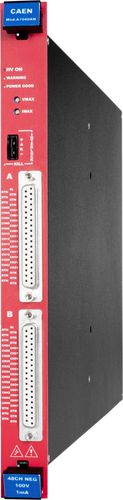

I/O power supply module A7040

48 independently controllable High Voltage channels 100 V / 1 mA output range Available with either positive or negative polarity DB37 Multipin connectors Common floating return shared by all channels Low ripple Under/over-voltage alert, overcurrent and max. voltage protection Interlock logic for unit enable Software Tool for easy channel management Overview A7040 is the new high density general purpose power supply offering you all the safety, performance and control of a completely independent channel technology at the cost effective price of a distributor! Well suited for large Silicon detectors arrays, this single width board (5 TE wide) family houses 48 independent High Voltage channels available with either positive or negative polarity, equipped with DB37 connector. The maximum output current is 1 mA, with 2 nA monitor resolution. The maximum output voltage can be set through a potentiometer to a value which is common to all channels and can be read out via software. The A7040 channels share a Common Floating Return, which allows on-detector grounding reducing the noise level; the floating return is insulated from the crate earth up to ±50 V. Channels are delivered through DB37 connectors.
