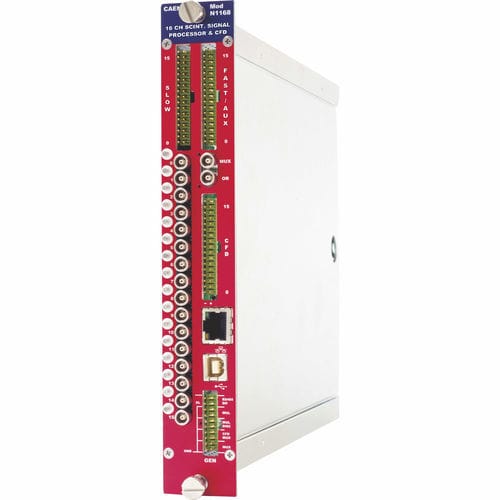

Signal amplifier N1168

programmableDC

16 channels in a one unit wide NIM module Fast – Slow signal discrimination Fast Scintillator application Positive or negative inputs, hardware selectable Completely programmable via USB, RS485 and Ethernet 3 Programmable shaping time per channel 2 bit Coarse Gain and 8 bit Fine Gain, independent for Slow and Fast/Aux output Automatic DC Restorer for Fast/Aux and Slow output ECL CFD output, with Delay and Width Individually programmable CFD Crossing Delay hardware settable in 5 steps CFD Threshold Individually programmable with 12 bit resolution CFD walk automatically adjusted OR output with individual channel enabling Multiplicity output Multiplexed Slow, Fast/Aux and CFD output Multiplicity trigger output Pile-up rejector Overview The N1168 is suitable for several type of scintillator detectors, particularly where different decay time of the scintillation light are present. This module allows to obtain the full handling of the detector signal, giving the total energy, amplitude of the fast component and the time information. The analysis of the two dimensional spectrum (fast versus total) allows an excellent gamma-neutron separation for liquid scintillators or CLYC detectors, gamma-charged particle separation for BaF2 detectors, and to disentangle the gamma interaction in the different parts of a Phoswich detector. For scintillator detectors with a single light component, the fast output can be used as a second total energy output, meeting the requirements of dual energy range experimental setups, avoiding the split of the signal on two shaping amplifiers.
