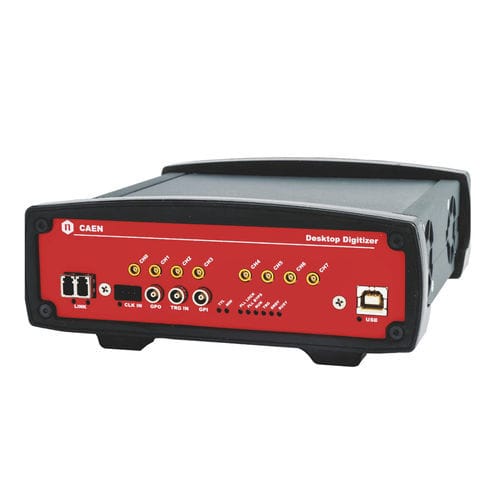

Analog digitizer DT5725

14-bit

14-bit @ 250 MS/s Analog inputs on MCX coaxial connectors NSCLDAQ Supported (DPP-PSD and DPP-PHA only) 8 channels, Desktop module 0.5 and 2 Vpp selectable input dynamic range with programmable DC offset adjustment Algorithms for Digital Pulse Processing Pulse Height Analysis (DPP-PHA) Pulse Shape Discrimination (DPP-PSD) Zero Length Encoding (DPP-ZLEplus) – NEW Dynamic Acquisition Window (DPP-DAW) – NEW USB and Optical Link communication interfaces Multi-board synchronization features Daisy chain capability Compliant with CoMPASS, MC2Analyzer, DPP-ZLEplus and DPP-DAW Demo Software, C and LabVIEW libraries Overview The DT5725S is a digitizer capable of recording waveforms along with performing advanced algorithms for online digital pulse processing (DPP). Utilizing DPP Firmware, users can acquire quantitative physical parameters (Integrated Charge, Pulse Shape Discrimination with very fine time resolution, Pulse Height Analysis) as well as read out waveforms with automatic pulse identification and baseline suppression on channel basis (Zero-Length Encoding and Dynamic Acquisition Window). The wide range of DPP algorithms supported by the DT5725S make it a “must-have” for any type of nuclear physics application. The DT5725S (previously DT5725) has also been upgraded, introducing a larger FPGA to accommodate more complex DPP algorithms and a new A/D converter for better stability which does not require temperature-related calibration. Input signals are read by a Flash ADC, 14-bit resolution and 250 MS/s sampling rate, which is well suited for mid-fast signals as the ones coming from liquid or inorganic scintillators coupled to PMTs or Silicon Photomultipliers,
