AC/DC power supply R8033

multiple-outputvariable-outputsingle-phase

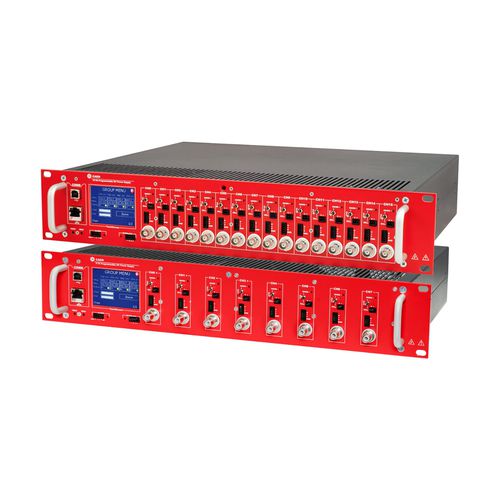

8-16 Channel 4 kV/ 3 mA (6W) 19'' Power Supply Module (USB/Ethernet/Touchscreen) Features • 8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered) • 4 kV / 3 mA output range • Channels with either positive or negative polarity • SHV coaxial output connectors • Low Ripple • Under/over-voltage alert, overcurrent and max. voltage protection • Interlock logic for board enable and Individual channel kill • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA) • 2.8″ color touch screen display • Local and Remote control (USB2.0/Ethernet) • Software Tools for easy channel management Overview The CAEN Mod. R8033 provides 8 or 16 independent 4 kV / 3 mA (6W) channels in a 19″ rack unit (110/220V AC Powered). Each channel can provide a 4 kV max voltage and a 3 mA max current (up to 6W). The unit is available with positive, negative and “mixed” (4-8 positive and 4-8 negative) channels. Channels outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 10 nA Iset resolution.
