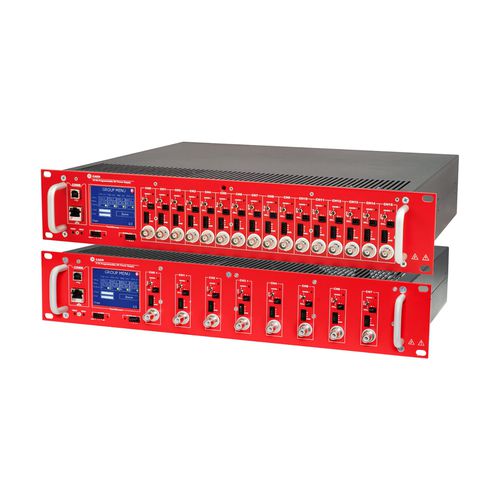

AC/DC power supply R8034

multiple-outputvariable-outputsingle-phase

8-16 Channel 6 kV/1 mA Rack 19' HV Power Supply (USB/Ethernet/Touchscreen) Features • 8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered) • 6 kV / 1 mA output ranges • Channels with either positive or negative polarity • SHV coaxial output connectors • Low Ripple • 20 mV Vset resolution • 5 nA Iset resolution • Under/over-voltage alert, overcurrent and max. voltage protection • Programmable ramp-up / ramp-down (1-500 V/s) • 2.8″ color touch screen display • Local and Remote control (USB2.0/Ethernet) • Interlock logic for board enable and Individual channel kill • Software Tool for easy channel management Overview The CAEN Mod. R8034 provides 8 or 16 independent 6 kV / 1 mA channels in a 19″ rack unit (110/220V AC Powered). Each channel can provide a 6 kV max voltage and a 1 mA max current. The unit is available with positive, negative and “mixed” (4 positive and 4 negative) channels. Channels outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 5 nA Iset resolution. Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.
