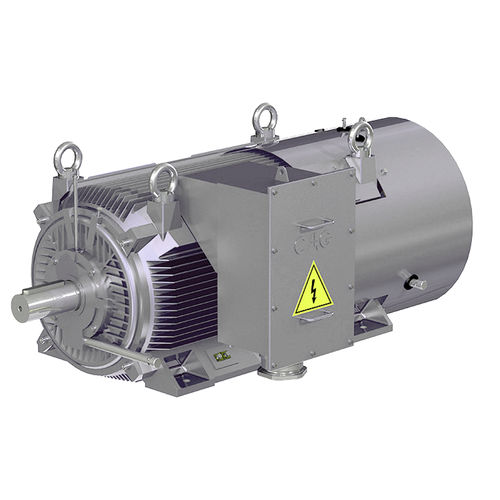

High-voltage motor HJK
three-phaseasynchronous> 1000 V

High-voltage motor - HJK - CAG Electric Machinery s.r.o. - three-phase / asynchronous / > 1000 V
High-voltage motor - HJK - CAG Electric Machinery s.r.o. - three-phase / asynchronous / > 1000 V
High-voltage motor - HJK - CAG Electric Machinery s.r.o. - three-phase / asynchronous / > 1000 V - image - 2
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
asynchronous
Voltage
> 1000 V
Protection class
IP55, IP65, IP56, IP66
Configuration
cast iron frame, small, TEFC
Number of poles
4-pole, 6-pole, 8-pole, 10-pole, 12-pole, 2-pole
Cooling mechanism
forced-ventilated
Other characteristics
high-voltage, electrically insulating
Power

Max.: 2,500 kW
(3,399.053 hp)

Min.: 132 kW
(179.47 hp)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

HJK electric motors offer a unique combination of small dimensions, high output, premium efficiency and easy maintenance. The offer also includes a design intended for use with frequency converters. Premium technology HJK motors are manufactured according to the latest development trends and contain first-class quality materials. Thanks to that, they can achieve the same power at a smaller size. Testing under load Each HJK motor manufactured has a test under full load included in the base price. Thanks to the load test, we can be sure that the motor will work well in your application. Customized solution We design our motors ourselves, so we are prepared to process most customer requirements. The motor can be larger, smaller, longer or shorter. Thanks to this service, substituting the motor in the application is very easy. We provide complete servicing, diagnostics and calibration of electric motors and generators. Key services: . Installation . Commissioning . Preventive maintenance . Emergency services . Service contracts . Spare parts We prepare our training courses so that they provide your employees with the necessary skills to take proper care of your equipment. Key benefits: . Fast reactions and decision-making thanks to the knowledge of technology, activities and maintenance . Less downtime thanks to an improved equipment management and operation . Fewer maintenance issues . Better risk management thanks to the availability of trained staff
