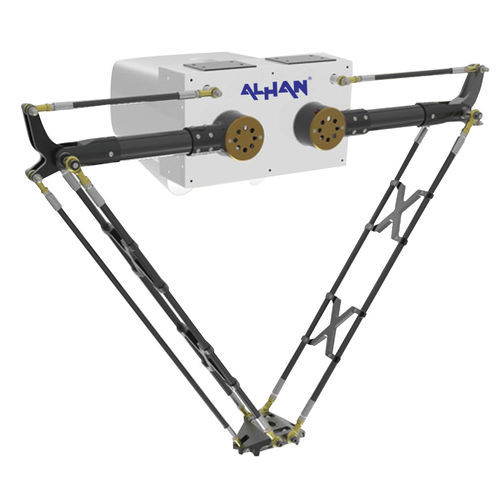

Handling robot D2 series parallel2-axisfor the beverage industry
Add to favorites
Compare this product
Characteristics
- Type
- parallel
- Number of axes
- 2-axis
- Function
- handling
- Application domain
- for the pharmaceutical industry, for medical applications, for the beverage industry
- Other characteristics
- high-speed
- Payload
5 kg, 15 kg, 30 kg
(11.023 lb, 33.069 lb, 66.139 lb)- Reach
1,000 mm, 1,300 mm
(39.37 in, 51.18 in)- Repeatability
0.05 mm
(0.002 in)- Operating temperature
Max.: 77 °C
(171 °F)Min.: 25 °C
(77 °F)
Description
The 2 DOF high- speed parallel robot is designed for plane handling and assembly of light material, it does not need to be equipped with vision and relies on sensor positioning to complete the plane operation.
Under the testing trajectory (25-305-25) of international standard, the cadence can be stabilized at a maximum of 350 cycles/min.
Under the condition of high speed (300 cycles/min and above), the precision can be up to ± 0.02 mm.
