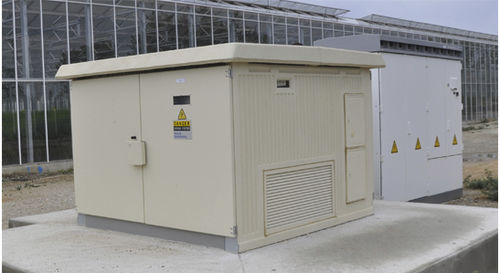

Distribution transformer NAUVASOL

drysubstationsolar

Step-up substations designed for renewable energy applications (co-generation, hydraulics, biomass, wind and solar) and energy storage. Connected by antenna, lead-through or cut-off from a private MV network, these substations are used to convert and distribute produced energy and to protect operations and the network. • LV main distribution board • NOGARIS fully insulated compact MV units (2 incoming switch units per substation): lead-through or antenna • Direct supply to the transformer: cut-off • Optional substation automations (monitoring systems, remote management systems) • MV network management equipment: fault detection • Auxiliary substation power devices: 48 or 24 Vdc backup source, dry LV/LV transformer • Substation accessories: substation lighting, safety accessories, etc. • Substation approved according to the requirements of C13-200 by an inspection body. • Sturdy substation: proven on-site manufacturing process certified by the energy distributor. • Compact substation: can be manoeuvred and operated from the outside with separate access for medium voltage and low voltage. • No administrative formalities: its surface and height make it exempt from requiring a building permit. • Integrated breaker protection function • Operating safety: internal arc resistance (class IAC AB)
