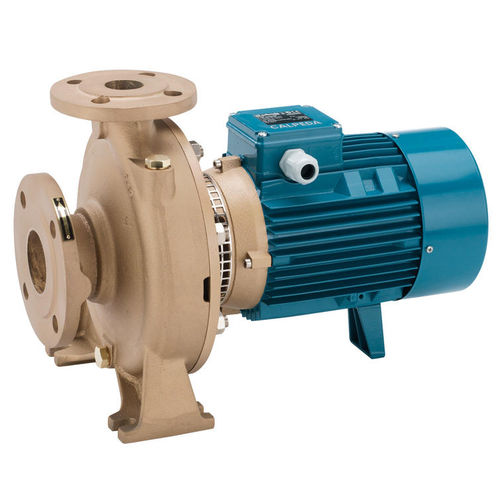

Centrifugal pump NM, NMSwaterelectricindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Domain
- industrial
- Applications
- firefighting, irrigation, circulation, for air conditioning, transfer, cooling
- Material
- cast iron
- Other characteristics
- close-coupled, for heating
- Flow
Max.: 480 m³/h
(16,951.04003 ft³/h)Min.: 1 m³/h
(35.31467 ft³/h)- Head
Max.: 95 m
(311'08" )Min.: 3 m
(9'10" )- Power
Max.: 75 kW
(101.97 hp)Min.: 0.25 kW
(0.34 hp)
Description
Construction
Close-coupled centrifugal pumps; electric motor with extended shaft directly connected to the pump up to 30 kW, new bracket construction for standard motors (stub-shaft construction) from 37 to 75 kW with integrated thrust bearing.
Pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733.
NM: version with pump casing and lanter bracket in cast iron.
B-NM: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted).
Connections
: Flanges according to PN 10, EN 1092-2.
Counter-flanges
(on request):
from NM 32/.. to NM 50/… : Screwed flanges EN 1092-1, PN 16.
from NM 65/.. to NMS 100/… : Flanges for welding EN 1092-1, PN 10.
Applications
- For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0,2%).
- For water supply.
- For heating, air conditioning, cooling and circulation plants.
- For civil and industrial applications.
- For fire fighting applications.
- For irrigation.
