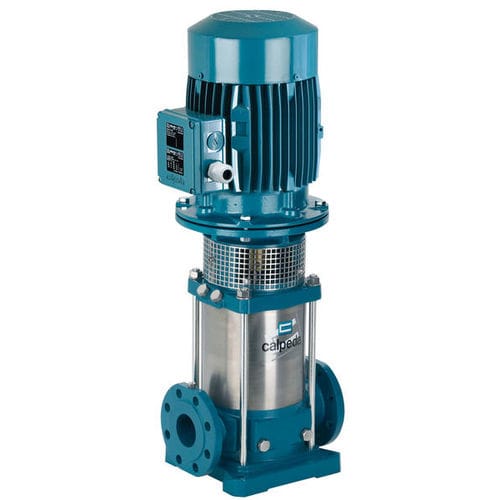

Centrifugal pump MXVwaterelectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- semi-submersible
- Domain
- industrial
- Applications
- irrigation, washing, high-pressure
- Material
- stainless steel
- Other characteristics
- vertical, multi-stage
- Flow
Min.: 0.6 m³/h
(21.1888 ft³/h)Max.: 60 m³/h
(2,118.88 ft³/h)- Head
Min.: 3 m
(9'10" )Max.: 275 m
(902'02" )- Power
Min.: 0.55 kW
(0.75 hp)Max.: 22 kW
(29.91 hp)
Description
Technical data
Construction
Vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).
Corrosion-resistant bearing sleeves lubricated by the pumped liquid.
A pump with thrust bearing and sleeve coupling for use of any standard motor with V1 construction.
Applications
For water supply systems.
For clean non-explosive liquids, without solid, filamentary or abrasive matter (with adaptation of sealing materials on request).
A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.
