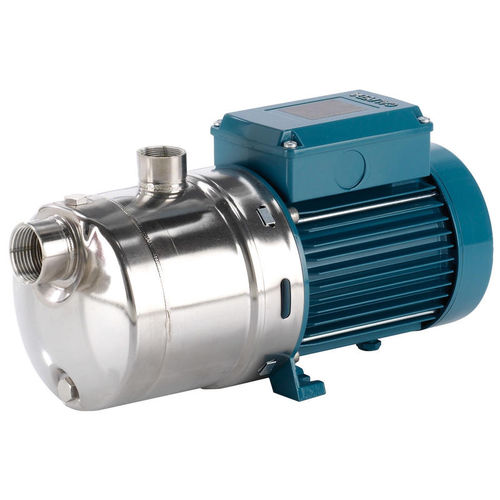

Centrifugal pump MXHwaterelectricindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Domain
- industrial
- Applications
- irrigation, filling, drain
- Material
- stainless steel
- Other characteristics
- compact, multi-stage
- Flow
Max.: 66 m³/h
(2,330.768 ft³/h)Min.: 1 m³/h
(35.31467 ft³/h)- Head
Max.: 68 m
(223'01" )Min.: 5.5 m
(18'00" )- Power
Max.: 7.5 kW
(10.2 hp)Min.: 0.33 kW
(0.45 hp)
Description
Technical data
Construction
Horizontal multi-stage close coupled pumps in chromenickel stainless steel.
Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top.
Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box).
Applications
- For water supply.
- For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
- Universal pump, for domestic use, for civil and industrial applications, for garden use and irrigation.
