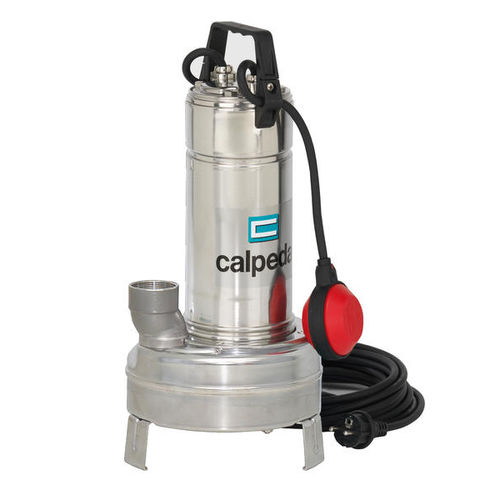

Vortex pump GX 40for wastewaterfor clear waterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- for wastewater, for clear water
- Operation
- electric
- Priming
- submersible
- Domain
- industrial
- Applications
- sewage, for cleaning, drain
- Material
- stainless steel
- Other characteristics
- vertical
- Flow
Min.: 3 m³/h
(105.944 ft³/h)Max.: 36 m³/h
(1,271.328 ft³/h)- Head
Min.: 3 m
(9'10" )Max.: 12.9 m
(42'03" )- Power
Min.: 0.55 kW
(0.75 hp)Max.: 1.2 kW
(1.63 hp)
Description
Technical data
Construction
Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
GXC: with two-passage impeller.
GXV: with free-flow (vortex) impeller.
Double shaft seal with interposed oil chamber.
Applications
For clean and dirty water, also containing solids up to 35 mm grain size.
The GXV free-flow impeller construction is particularly suitable for liquids with a high solid content or with filamentous particles.
This construction (with smooth surfaces in rolled-stainless steel and easy access for cleaning) is also suitable for certain uses in the food industry.
