Wastewater pump Aelectricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- for wastewater
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Domain
- industrial
- Applications
- irrigation, sump, drain
- Other characteristics
- close-coupled, with open impeller
- Flow
Min.: 3.6 m³/h
(127.1328 ft³/h)Max.: 66 m³/h
(2,330.768 ft³/h)- Head
Min.: 3.3 m
(10'09" )Max.: 33.6 m
(110'02" )- Power
Min.: 0.55 kW
(0.75 hp)Max.: 7.5 kW
(10.2 hp)
Description

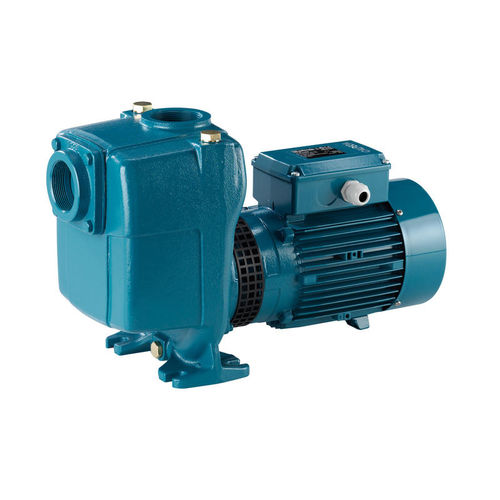

Close-coupled centrifugal pumps with open impeller.
The built-in backflow preventer avoids reverse siphoning when the pump is stopped and assures automatic re-priming at the next start.
The pump re-primes itself even if partially filled with liquid and with completely empty suction pipe.
B-A: bronze version.
Applications
- For clean or slightly dirty water, also with solids up to 10 mm grain size for A 50-125 and 15 mm for A 65-150.
- For draining a basin or a sump.
- For irrigation.
- For civil and industrial applications.
