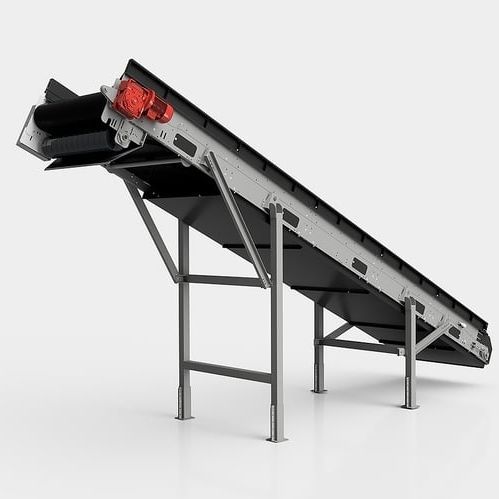

Belt conveyor NSM, NSP

inclinedelectric drivefor the recycling industry

Composed of a pressed sheet steel structure and triple ply rubber belt, rubber conveyor belts are suitable for transporting material of all types. The conveyor is equipped with lower idle rollers to support the belt. The conveyor, with black rubber three-ply belt and vulcanized load cleats, is complete with roller supports for the belt return side. Tracking profiles mounted in clearly defined positions ensure correct alignment of the belt during the operating cycle. The drive head with adequately powered gearmotor is equipped, like the idle head, with the belt tensioning and alignment system. Containment sidewalls and hoppers can be customized and the feet are all height adjustable. The conveyor bed can vary depending on the use. It will be composed of straight cylindrical rollers in the case of narrow conveyors, or concave rollers on large size conveyors. Technical specifications Product containment sidewalls Support structure with height adjustable feet Side inspection hatches for easy access to the belt for maintenance Installed power: 3 kW
