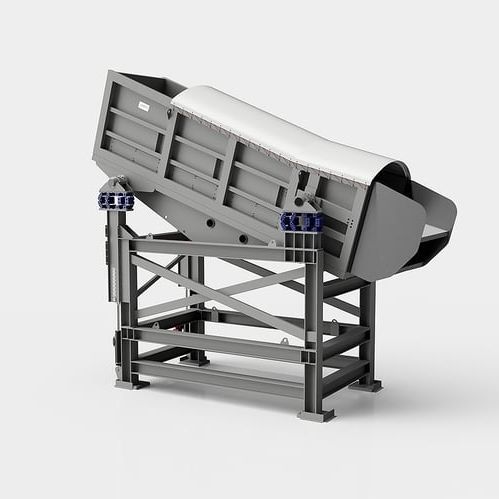

Vibrating screener

dry screeningwet screeningfor recycling

The vibrating screen exploits undulatory and shaking motion to separate the material from the powder/chips present in the feedstock, which is distributed uniformly over the entire surface of the vibrating screen for more effective separation in the subsequent stages. The vibrating screen is a system that exploits undulatory and shaking motion to separate the material from the dust/chips, thanks to the presence of a perforated surface over the entire length of the screen. The material is also distributed over the entire surface of the vibrating screen uniformly to allow more effective separation in the subsequent phases. The dust or fine material drops from the underside of the screen through the holes in the transport bed, while the remaining material is discharged at the end of the trough conveyor. The motors deliver mono-directional vibration, imparting movement and transport direction to the material. Technical specifications Robust frame in arc-welded tubular members Arc- welded trough resting on anti-vibration mounts Removable perforated sheet steel panels over the entire length, fixed to the conveyor trough Open Style Screening table in carbon steel
