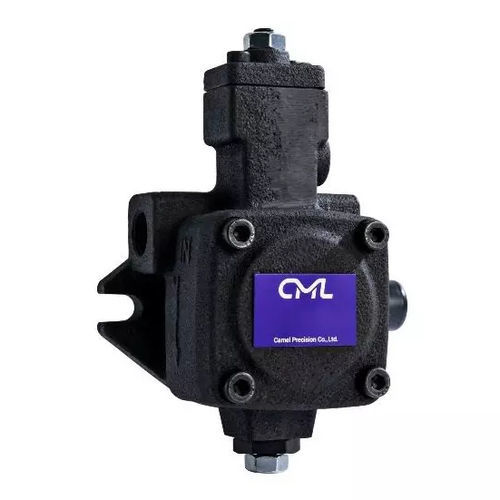

Oil pump VCM-SF-12D-30-B (9T)

electricself-primingvane

Variable Displacement Vane Pump with Splined Shaft, Variable Volume Vane Pump With Splined Shaft Variable Displacement Vane Pump With Splined Shaft 7T, 9T makes the connection between the motor and the pump more concentricity correction function, reducing shaft wear and increasing service life. It is suitable for hydraulic systems and CNC lathes that require low-noise environment with hydraulic pressure within 70 bar. CML Variable Vane Pump With Splined Shaft pressure can be adjusted in the range of 20 - 70 bar, and the flow adjust range is 12 - 40 L/min. Before inquiring, you can inform the working pressure and flow, as well as the working conditions of the machine, and we will select the most suitable model for you. CML (Camel Precision Co., Ltd.) is one of the leading manufacturers in Taiwan, as a hydraulic total solution provider, dedicated to the manufacture and sales of hydraulic products, assisting customers in building their customized power units and hydraulic systems. Feature Reduce the negative effects of interference between the oil pump and the motor: The design of the 7T, 9T splined can moderately reduce the negative effects of interference caused by the oil pump motor combination, such as the heating of the oil pump motor, the increase of current value, and the increase of noise. Increase the convenience of after-sales service: The combination of the standard oil pump and the motor is likely to cause abnormal noise, heat generation, and increase in motor current due to installation problems, which reduces the product life.
