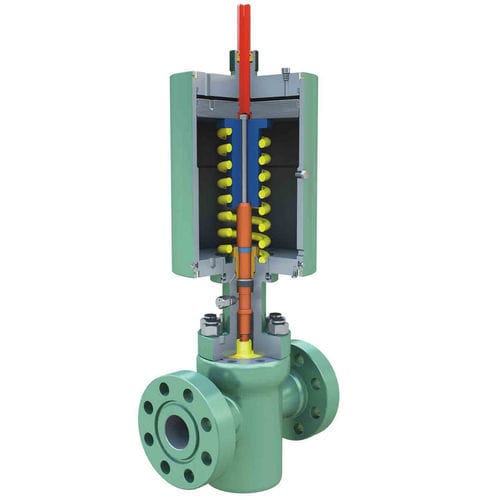

Pneumatic valve actuator MP

linearpistonrugged

Cameron MP Series pneumatic piston actuators are designed to be used with most manufacturers’'gate valves. Recommended when instrument air is available, the MP actuator offers a reliable and cost-effective option when a robust actuator is required. Fail-safe design Rising stem design Cameron sealing technology Actuator interchangeability Fixed drift adjustment Corrosion-resistant materials Optional devices and accessories Actuator specifications API Spec 6A actuators for use with 1 13/16- through 6 3/8-in nominal gate valves API Spec 6A Appendix F, PR-2 qualified 13- through 17-in standard diaphragm sizes for these valve groups 450-psi [31-bar] test pressure Standard 1/2-in-NPT inlet port Wide range of options and accessories available Bonnet specifications Standard stem and bonnet material PSL 1, 2, 3, and 4 available Standard bonnet backseat test port provided Standard packing leak indicator port provided
