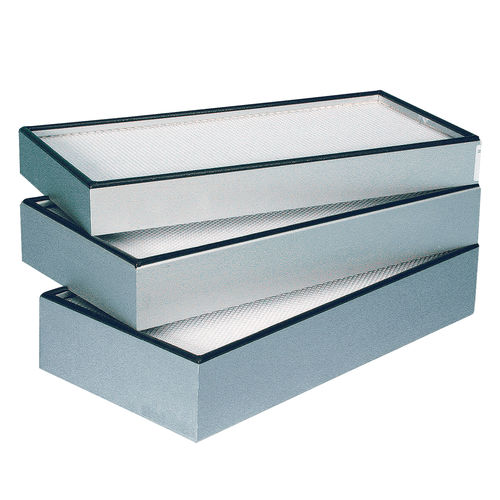

Air filter Megalam FabSafe series

panelfiberglassfor clean rooms

HEPA (H14) and ULPA (U15, U16) filter panels with ultra low outgassing components especially made for turbulent and laminar airflow applications in microelectronic industry. Optimized with glass fiber media for low pressure drop and long life time. Developed for microelectronic cleanrooms and equipment Ideal for nanoparticle filtration (100 nm) No organic outgassing from test aerosol Ultra-low outgassing (dopant free) components 100% filter scan tested according to ISO29463 Individual efficiency test reports High dust holding capacity Manufactured and packed in a controlled environment APPLICATION Microelectronic cleanrooms and equipment. FILTER FRAME Extruded anodized aluminium MEDIA Glass fiber MAX TEMPERATURE (°C) 70ºC RELATIVE HUMIDITY 100% RECOMMENDED FINAL PRESSURE DROP MD: 500 Pa, MX: 600 pa, MG:800 Pa RECOMMENDED FINAL PRESSURE DROP 2x Initial pressure drop SEPARATOR Hot-melt GASKET EPDM GRILLE, DOWNSTREAM Expanded metal painted GRILLE, UPSTREAM Expanded metal painted SEALANT Polyurethane MAX AIRFLOW Can be calculated on request COMMENT Test: 100% individual scan test according to EN1822, IEST RP-CC007 or required standard Test aerosol: PSL. Oil free Fire rating: UL900 Many frame options and dimensions are available on request
