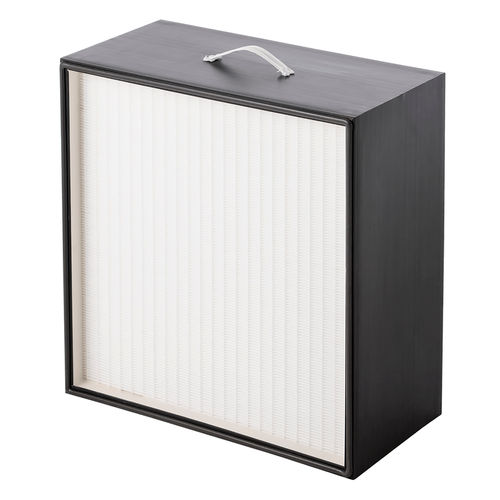

Air filter Absolute™ DG seriespanelfiberglassexhaust
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- panel, fiberglass
- Applications
- exhaust
- Material
- ABS, polyurethane
- Norms
- H13, H14
- Other characteristics
- HEPA, high-flow, flat
- Operating pressure
250 Pa, 290 Pa
(0.036 psi, 0.042 psi)- Flow
Min.: 1,350 m³/h
(47,674.8 ft³/h)Max.: 4,250 m³/h
(150,087.334 ft³/h)- Fluid temperature
70 °C
(158 °F)
Description
HEPA (H13 & H14) filter for supply & exhaust air systems that require a scanable media surface and high air velocities (2,5 m/s).The lightweight ABS frame supports safe and easy installation and enables incineration disposal.
High airflow (2,5 m/s)
Scanable flat media pack surface
Lightweight and fully incinerable
100% leak-free, individually scan tested
Compliant to VDI 6022
APPLICATION
HEPA-Filter for high air flows
FILTER FRAME
ABS
MEDIA
Glass fiber
RELATIVE HUMIDITY
100%
RECOMMENDED FINAL PRESSURE DROP
2x Initial pressure drop
SEPARATOR
Hot-melt
GASKET
Polyurethane, endless foamed
SEALANT
Polyurethane
MAX AIRFLOW
Can be calculated on request
MAX. FINAL PRESSURE DROP
1000 Pa
COMMENT
All filter tested acc. to EN 1822 with individual protocol
