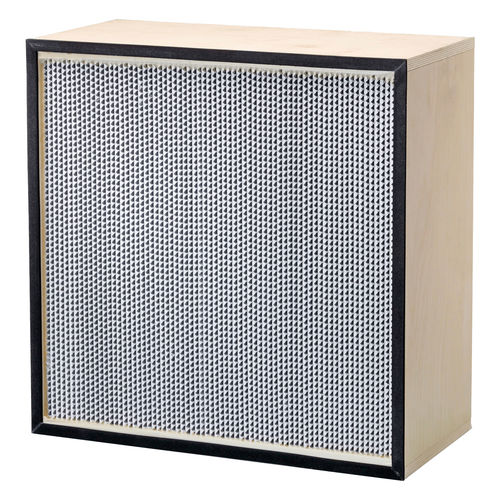

Air filter Absolute seriesparticulatepanelexhaust
Add to favorites
Compare this product
Characteristics
- Designed for
- air, particulate
- Filtration element
- panel
- Applications
- exhaust
- Material
- aluminum, polyurethane
- Norms
- E11
- Other characteristics
- high-efficiency, HEPA, rugged
- Operating pressure
125 Pa
(0.018 psi)- Flow
Max.: 1,965 m³/h
(69,393.32 ft³/h)Min.: 310 m³/h
(10,947.547 ft³/h)- Fluid temperature
110 °C
(230 °F)
Description
E11 EPA filter for supply- or exhaust air system, that require high mechanical strength. Applications with temperature above 70°C (maximum 110°C). Pleats are uniformly separated by corrugated aluminum separators incorporating a hemmed edge to prevent damage to the media.
Efficient particulate air filter (E11)
High mechanical strength
Increased temperature resistance
High dust holding capacity
FILTER FRAME
Plywood, Galvanised steel
MEDIA
Glass fiber
RELATIVE HUMIDITY
100%
RECOMMENDED FINAL PRESSURE DROP
2x Initial pressure drop
SEPARATOR
Aluminium
GASKET
Polyurethane, endless foamed
SEALANT
Polyurethane
