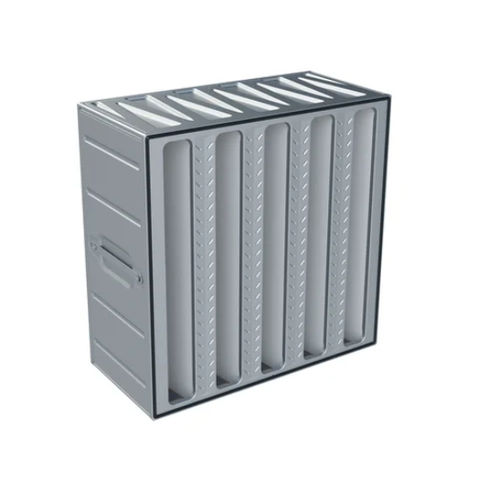

High-temperature filter Absolute V HT120 series
airpocketfiberglass

high-temperature filter
high-temperature filter
Add to favorites
Compare this product


Characteristics

Designed for
air
Filtration element
pocket, fiberglass
Material
stainless steel, steel
Norms
H13
Other characteristics
HEPA, low pressure, high-flow, high-temperature, large, V-form
Operating pressure

250 Pa
(0.036 psi)

Flow

1,300 m³/h, 1,500 m³/h, 3,400 m³/h, 4,000 m³/h
(45,909.067 ft³/h, 52,972 ft³/h, 120,069.867 ft³/h, 141,258.667 ft³/h)

Fluid temperature

120 °C
(248 °F)

Description

HEPA H13 filter for supply air systems that require a very high airflow and low pressure drop. Applications with temperature above 70°C (maximum 120°C) like dyers in Food&Beverage industry. Modern steel frame with V-shaped pleat pack arrangement combines highest capacity and stability with lowest pressure drop and weight. High Temperature HEPA Filter For very high airflows (up to 3,7 m/s) Lightest V-bank steel HEPA in the industry 100% leak-free : individually scan tested Strong and airtight frame High filter surface area offers low pressure drop for energy savings and longer life APPLICATION Industry and hospitals FILTER FRAME Stainless steel, Galvanised steel MEDIA Glass fiber SEPARATOR Glass fiber GASKET EPDM SEALANT Polyurethane INSTALLATION OPTIONS Mounting systems: FCBL-A housing COMMENT
