Air filter GigaPleat NXDP series
activated carbonpocketfor clean rooms

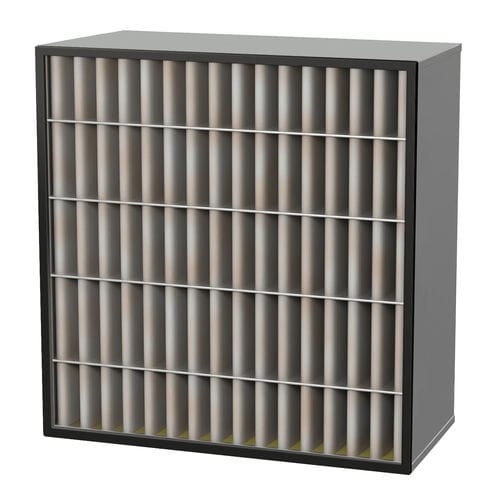

Air filter - GigaPleat NXDP series - Camfil - activated carbon / pocket / for clean rooms
Air filter - GigaPleat NXDP series - Camfil - activated carbon / pocket / for clean rooms
Air filter - GigaPleat NXDP series - Camfil - activated carbon / pocket / for clean rooms - image - 2
Add to favorites
Compare this product


Characteristics

Designed for
air
Filtration element
activated carbon, pocket
Applications
for clean rooms
Material
stainless steel, galvanised steel, polyurethane
Other characteristics
pleated, low pressure
Operating pressure

50 Pa, 140 Pa
(0.007 psi, 0.02 psi)

Flow

Max.: 3,300 m³/h
(116,538.4 ft³/h)

Min.: 1,600 m³/h
(56,503.467 ft³/h)

Fluid temperature

40 °C
(104 °F)

Description

A deep pleated molecular filter with customizable metal frame fitted with high cleanliness embedded adsorbents for removal of VOCs, acids and bases. Suitable for cleanroom air recirculation units and ceiling installation where multi contaminant removal is required. Multiple media types can be combined into the same filter Low pressure drop Low outgassing components Individually VOC outgassing tested High media cleanliness Predicted removal efficiency and lifetime by Camfil's proprietary software Typical target gases: VOCs, acids, bases, dopants, refractories, ozone APPLICATION Clean room recirculation air, clean room make up air FILTER FRAME Stainless steel, Galvanised steel MEDIA Activated Carbon, Impregnated Activated Carbon RELATIVE HUMIDITY 30% - 70% GASKET Polyurethane, EPDM SEALANT Polyurethane PARTICLE CLEANLINESS ISO Class 6 COMMENT Gasket Position: 01 - downstream, 10 - upstream Outgassing: Individually outgassing tested for VOC emissions
