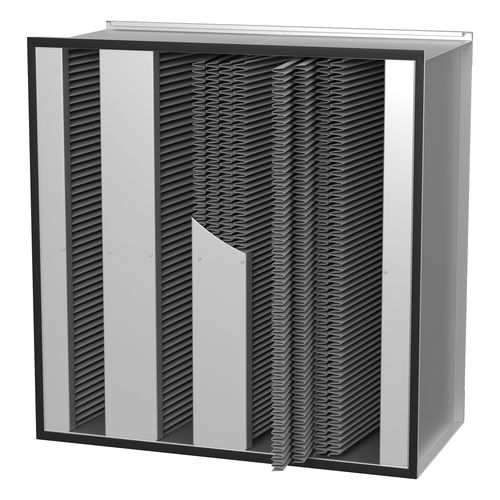

Air filter GigaPleat XPC series

panelactivated carbonfor clean rooms

A V-Cell type molecular filter with exchangeable panels in a double header metal frame fitted with high cleanliness embedded adsorbents for removal of VOCs, acids and bases. Ideal for cleanroom make-up air units and air recirculation units with options for up to two different contaminant types. Reduced waste through reusable housing Up to 2 media types can be combined into the same filter Exchangeable panels Low outgassing components High media cleanliness Predicted removal efficiency and lifetime by Camfil's proprietary software Typical target gases: VOCs, acids, bases, ozone APPLICATION Clean room recirculation air and clean room make up air FILTER FRAME Stainless steel, Galvanised steel MEDIA Activated Carbon, Impregnated Activated Carbon RELATIVE HUMIDITY 30% - 70% GASKET Polyurethane, EPDM SEALANT Polyurethane PARTICLE CLEANLINESS ISO Class 6 COMMENT Gasket Position: 01 - downstream, 10 - upstream Configuration XPC: 2 layers of 8 panels / full size housing Outgassing: Individually outgassing tested for VOC emissions on request
