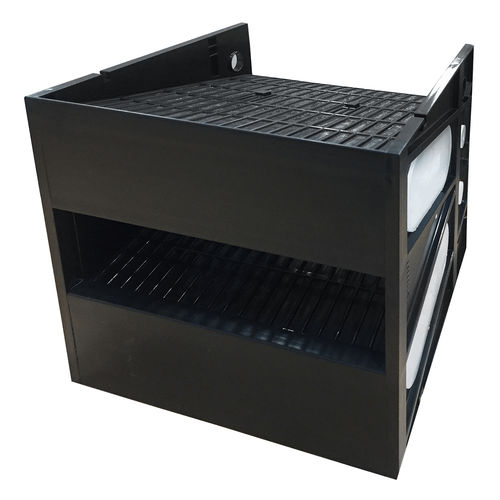

A compact, refillable, corrosion resistant V-cell molecular filter filled with Camfil activated alumina or activated carbon. They are ideal for corrosion control applications versatile gas phase air filter installed in supply, recirculation, and exhaust air systems in commercial, industrial, and process applications. Their design provides the best total cost of ownership for the removal of corrosive, odorous, and irritant gases.
V-cell molecular filter filled with any Camfil carbon or CamPure media
Integrated PET mesh allowing for smaller media and low dusting
Predicted removal efficiency and lifetime by Camfil's proprietary software
UL 900
Easily retrofitted in existing hardware or dedicated Camfil hardware
Suitable for commercial and industrial applications
APPLICATION
Heavy duty disposable plastic Vee Cell Modules to specifically treat corrosion control of electronic and electrical equipment in heavy process industries. They may also be used in odour removal applications in pulp and paper mills and wastewater treatment plants, or lighter applications such as airports, cultural heritage building and commercial offices.
FILTER FRAME
ABS , PET
MEDIA
Activated Carbon, Impregnated Activated Carbon, Impregnated Activated Alumina
GASKET
EPDM, PU-foam
INSTALLATION OPTIONS
PSSA Housing, VG track
COMMENT
Filter performance will be affected if used in conditions where T and RH are above or below the optimum conditions.
VG300 can be used in Supply Air Systems, while the VG440 can be used in Supply Air and Recirculation Air Systems
#1 - Other models with different targeted contaminant options are available. High performance media will be selected in accordance to the type of .
