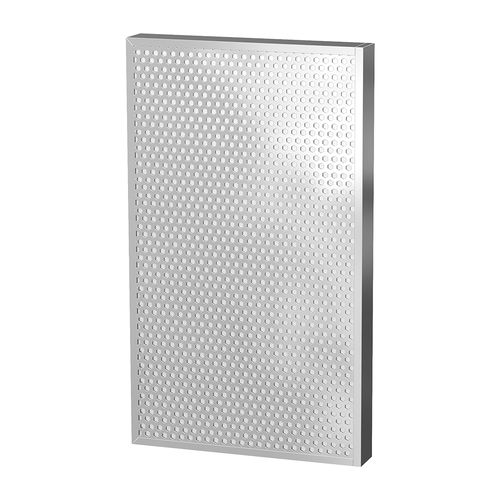

Air filter CamCarb PM seriesgaspanelactivated carbon
Add to favorites
Compare this product
Characteristics
- Designed for
- air, gas
- Filtration element
- panel, activated carbon
- Applications
- for air conditioning
- Material
- stainless steel, plastic, steel
- Operating pressure
30 Pa, 60 Pa, 165 Pa
(0.004 psi, 0.009 psi, 0.024 psi)- Flow
175 m³/h, 300 m³/h, 360 m³/h, 720 m³/h
(6,180.067 ft³/h, 10,594.4 ft³/h, 12,713.28 ft³/h, 25,426.56 ft³/h)- Fluid temperature
80 °C
(176 °F)
Description
May be filled with any molecular filtration media
May be lined with a fine scrim to minimise shedding
Vibrated fill technique to prevent media settlement
Standard and non-standard sizes available
Galvanised steel frame, option for stainless steel
Plastic frame for certain standard sizes
Application
Adsorption of odours and gases in air conditioning applications
Frame
Stainless steel, Galvanised steel
Media
Activated Carbon
Max temperature °C
40ºC
Relative Humidity
30% - 70%
Installation options
Front and side access housings and frames are available
