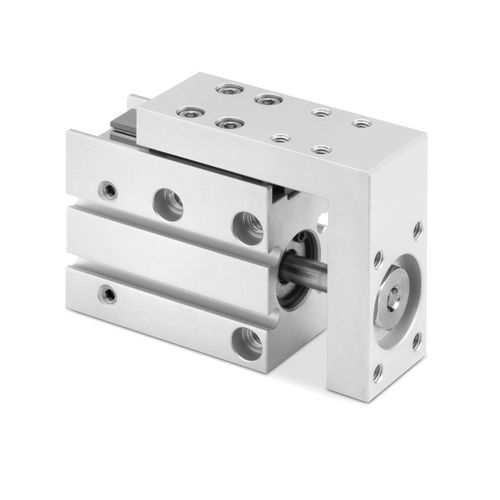

Pneumatic cylinder MSN seriespistondouble-actingISO
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- piston
- Configuration
- double-acting
- Norms
- ISO
- Applications
- industrial
- Other characteristics
- compact, standard, precision, mini, slide
- Stroke
Min.: 5 mm
(0.197 in)Max.: 50 mm
(1.969 in)- Bore
6 mm, 10 mm, 16 mm, 20 mm
(0.24 in, 0.39 in, 0.63 in, 0.79 in)- Pressure
Min.: 1.5 bar
(21.8 psi)Max.: 7 bar
(101.5 psi)- Speed
Min.: 50 mm/s
Max.: 500 mm/s
- Ambient temperature
Min.: 5 °C
(41 °F)Max.: 60 °C
(140 °F)
Description
The mini slides Series MSN are an optimum solution for quick and accurate movements, especially suitable for the pick & place and inserting applications common in the assembly and secondary packaging sector.
This series is available in 4 sizes, composed of a combination of a pneumatic cylinder and a precision ball bearing guide and is ideal for applications requiring a high movement frequency.
Equipped with an internal magnet, proximity switches can be integrated to enable position monitoring.
Their compact and light design makes the mini slides Series MSN ideal to be used in narrow spaces and in industrial applications that require high flexibility in the movement of loads.
Strokes min. max - see table
Fluid - filtered air in class 7.8.4 according to ISO 8573-1 standard. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Sensors - CSD
