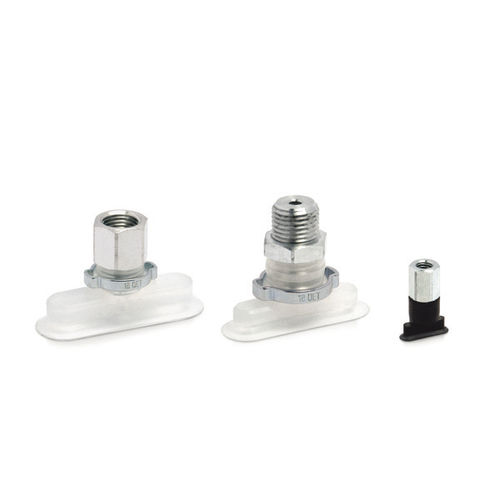

Flat suction cup VTOF series

ovalrubbersilicone

Series VTOF flat oval suction pads consist of a nipple and rubber part. The nipples are inserted directly into the rubber part. Pads size 30x10 and larger are further equipped with a special clip in order to avoid unwanted rotation during operation. The suction pads can also be ordered separately without nipples as spare parts. Applications: - Handling of narrow workpieces with small undulated gripping surface such as plates, extruded profiles plastic components, etc - Handling of frame elements as for example doors, windows, etc - Silicone version for the handling of pieces at high temperatures » Low profile with reduced intrinsic volume which enables short cycle times and/or the use of smaller vacuum generators. » Optimised shape for high suction force with reduced size. » Size 30x10 and up equipped with a special clip to prevent unwanted rotation. Description - robust and wear resistant pad consisting of rubber part and connection nipple Construction - - nipples and suction pads are supplied not pre-assembled - size 30x10 mm and up equipped with a clip to avoid rotation Maintenance - it is possible to replace the rubber part Working temperature - NBR version: -30°C ÷ +120°C (for short time <30 sec.); -10°C ÷ +70°C (long-term) SILICONE version: -40°C ÷ +220°C (for short time <30 sec.); -30°C ÷ +180°C (long-term)
