Plug valve MC series
compactin-linemodular

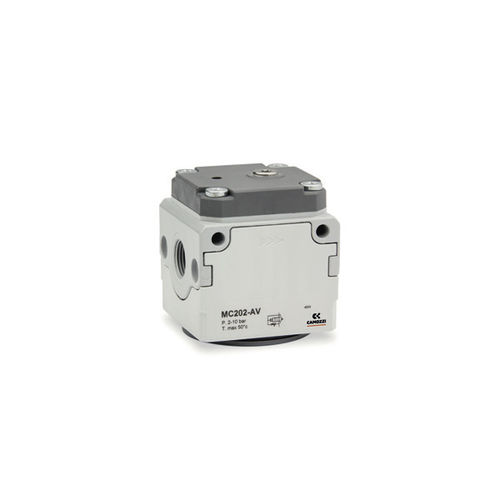

Plug valve - MC series - CAMOZZI AUTOMATION - compact / in-line / modular
Plug valve - MC series - CAMOZZI AUTOMATION - compact / in-line / modular
Add to favorites
Compare this product

Characteristics

Type
plug
Body$
compact, in-line, modular
Associated function
soft-start
DN

0.25 in, 0.375 in, 0.5 in

Pressure

Min.: 2 bar
(29 psi)

Max.: 10 bar
(145 psi)

Temperature

Min.: -5 °C
(23 °F)

Max.: 50 °C
(122 °F)

Flow rate

1,850 l/min, 4,000 l/min, 4,350 l/min
(488.72 us gal/min, 1,056.69 us gal/min, 1,149.15 us gal/min)

Description

» Safety function to maintain the command sequence » Opening of the main seat at about 50% of the inlet pressure Series MC soft start valves are used to avoid damages to people or equipment when pressurising pneumatic systems containing cylinders. The features of these components allow to pressurise an equipment up to 50% of the indicated pressure, after which 100% is reached rapidly. The usual location of the soft start valve is after the FRL unit; in fact the modular design allows for perfect adaptability with all Series MC. A pressure switch can be mounted into the upper part of the unit after removal of the S2610 G1/8 plug. An electrical or pneumatic 3 way valve should be installed at the bottom of the unit to allow depressurisation.
