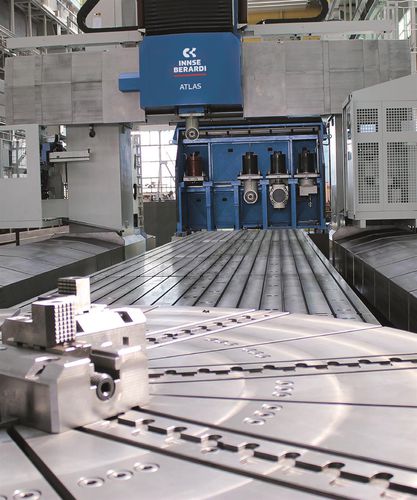

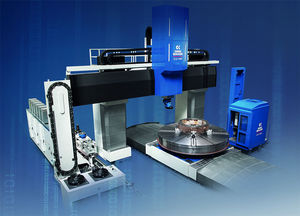

5-axis CNC milling center Atlas Hydro

verticalwith fixed portalwith rotary table

Range of heavy duty medium and large size vertical milling centers with hydrostatic guideways, suitable for machining large components. Their design ensures maximum machining accuracy and high productivity, with great stability during operations. As all Innse-Berardi machines, also the Atlas Hydro machines are designed, sized and created using the FEM (Finite Element Method). The flexible, modular design offers three different configurations: P Planomiller type - fixed portal G Gantry type - lower rails GU Gantry type - upper rails A complete range of advanced milling attachments provides the optimum solution for each user’s application requirements. Vertical turning tables Both, Atlas Vision as well as Atlas Hydro can be equipped optionally with Turning Tables for Turning, Boring, Milling, Turn-Milling and Grinding. The full range is featuring hydrostatic main bearings. A complete range of advanced attachments provides the optimum solution for the different application requirements. The modular design covers a broad range of different sizes: Max. turning diameter up to 9,000 mm Turning table diameter up to 8,000 mm Turning table load up to 400 ton Turning table speed up to 200 rpm Turning table power up to 200 kW
