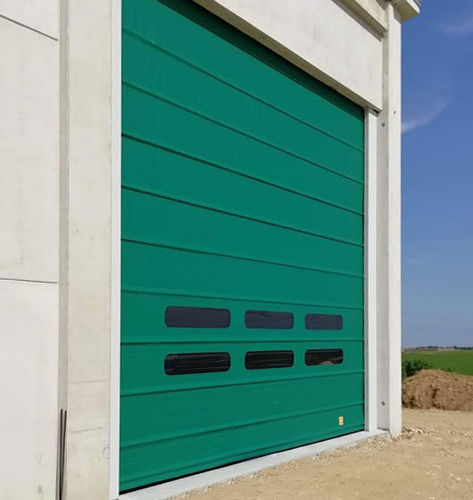

Fold-up door POCKET SMART

galvanised steelhigh-speedindustrial

Rapid folding doors with belt lifting system made with hot-dip galvanized fabric metal, assembled without welding. OPERATION The Smart Pocket rapid folding doors are equipped with leaf reinforcing pipes which vary in quantity and size according to the number of sectors and dimensions of the compartment. This reinforcement allows exceptionally wide dimensions and high resistance to wind pressure, making this door suitable for installation on the whole front area of the building. STRUCTURE Galvanized steel structure with anti-noise brushes on the vertical posts. 700 g/m² polyester fabric cover, with horizontal tubular reinforcements that guarantee excellent wind resistance. A transparent PVC window at eye level, (additional windows are optional). The door is available in a wide range of RAL colors both for standard sheets and insulated sheets. GEAR MOTOR The gearmotor, 400V three-phase, 50Hz, 0.5 kW, IP 55, is complete with electromechanical brake, electronic programmer and three-phase plug connector to the power supply. The larger doors have oversized gearmotor and controls. A crank for emergency opening is positioned under the gearmotor, and it’s maneuverable from the ground. CONTROLS AND SAFETY DEVICES The main panel is inside a box with IP55 protection, it is pre-wired to the gearmotor and includes an emergency switch. In case of emergency the motor and the panel can be easily controlled, and the door can be totally opened. (For large and high doors, an aerial walkway is foreseen and allows direct control of the motors on top of the structure).
