Hydraulic motor hydraulic power unit

electrically-poweredcylinderfor doors

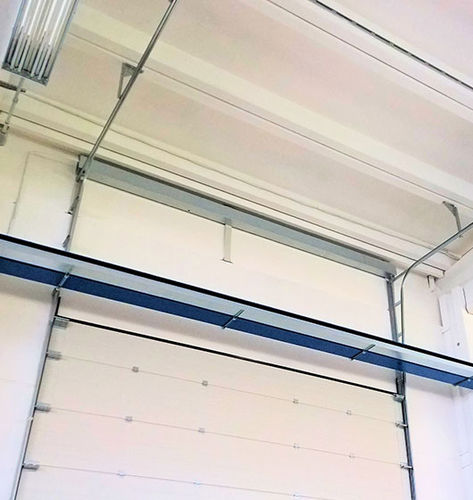

Campisa has completed over 70,000 installations of our FIDELITY® hydraulic system and exported it in 26 countries, thanks to its reliability, total safety and maintenance free. The system is Class 3 certified, 50,000 cycles according to EN 16034: 2014 standard. Four standard units, adjustable at the time of installation, satisfy every need up to door openings of 8.5 m wide, 6.5 m high and 730 kg of weight. When choosing the right Fidelity® Powering hydraulic motor model, simply make sure that the dimensions and weight of the doors are within those supported by one of the four versions listed here, which refer to leaves with a minimum overlap of 25 mm on each side. For doors from a minimum of 2000 to a maximum of 3500 mm width and up to 3500 mm opening height. Overhead, telescopic and adjustable hydraulic opening system for sectional doors, easy and safe to install. Packing: the unit is 2230 mm long and can be shipped by air, if needed. Nominal size: Transport length 2230 mm Total extension 3720 mm (suitable for doors with a maximum width of 3500 mm) Door opening height: up to 3500 mm Door opening width: from 2000 to 3500 mm with 25 + 25 mm panel overlap Pile weight: up to 325 kg Lift cylinder: 40 mm bore / 700 mm stroke Opening speed with 0.75 kW motor (1.1 kW motor): 22 (30) cm/s Closing speed: 33 cm/s Free space required: 120 mm per side For doors 2500 to 4500 mm wide and up to 4500 mm high. Telescopic and adjustable hydraulic opening system for sectional doors, easy and safe to install. Packaging dimension, only 2730 mm. Nominal size: Transport length 2730 mm Total extension 4720 mm (Suitable for doors with a maximum width of 4500 mm)
