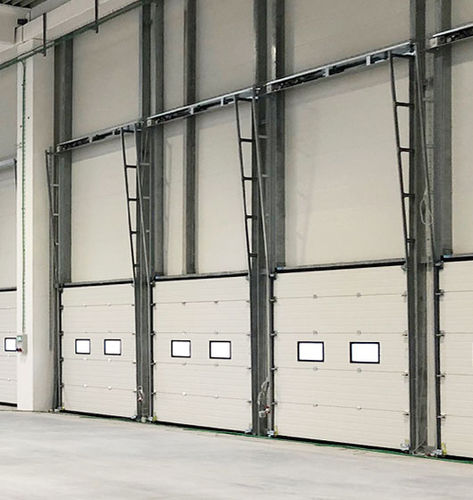

Hydraulic control unit FIDELITY®

compact

The Fidelity® Compact has the control unit, the hydraulic motor and the cylinder integrated in a single body. Fidelity® Compact hydraulic sectional door opening system: adjustable and telescopic, safe and easy to install. Suitable for doors from 2100 to 5000 mm wide and up to 5000 mm high. Adatto per porte da 2100 a 5000 mm di larghezza vano e fino a 5000 mm di altezza vano. Compartment height: up to 5000 mm. Compartment width: from 2100 to 5000 mm with 25 + 25 mm panel overlap. Pile weight: from 150 to 250 kg. Lifting cylinder: “S” bore 30 mm / Stroke 600 mm – “M” bore 40 mm / Stroke 800 mm – “L” bore 50 mm / Stroke 1000 mm. Closing speed: 15 cm / s. Free space required: 100 mm per side
