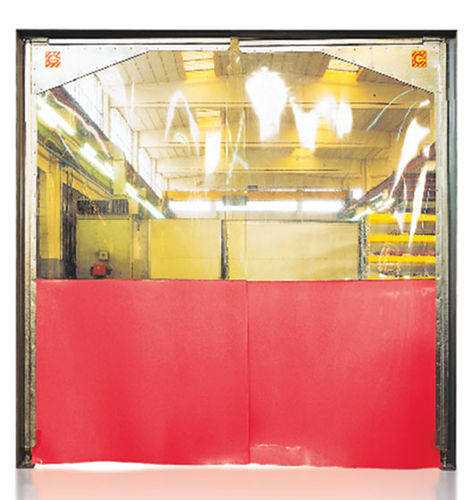

Swing door WING

hingedmetalstainless steel

Manual rapid swing doors with return spring, or automatic doors motorized by compressed air. The door opens in both directions, pushing manually, and closes by spring. SEMIAUTOMATIC The door opens pneumatically, when pushed in one direction or the other. The pneumatic system works with two cylinders and needs compressed air at 4 Bar pressure. AUTOMATIC The door opens pneumatically. The pneumatic system works with two cylinders and needs compressed air at a pressure of 4 Bar. The opening is managed by remote control or push button. Opening always occurs in one direction only. Power supply: 220V single-phase, 0.5A. Min. 4 bar compressed air required. Metal structure in stainless steel AISI 304. Plinths and end caps covered with PVC coating, 9 mm thick, color matte. Swing doors manufactured in compliance with the EN 13241 Product Standard. Complete with CE marking.
