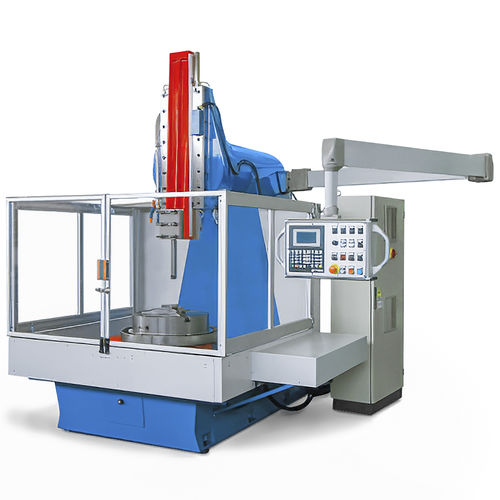

NC slotting machine 500E 4AC

4-axisrotating table

Our Slotting Machine 4AC is the result of 30 years experience and research in design and development of industrial slotting machinery and equipment. The CAMS slotting machine offers a number of important features : robust construction: the main structure is manufactured in robust thickness sheet metal (heat treated and processed); tables in high quality grade cast-iron (grade G30); the turntable with a working diameter of 1000mm and central 350mm diameter central through hole; travel surfaces in cast-iron and PTFE with lubrication system designed to substantially reduce the stick/slip effect axes move on recirculating ball screw assemblies; CAMS has recently improved the head by incorporating in-house designed and developed technological innovations. The ram has been modified in size to offer greater robustness and is driven by a brushless motor transforming it into a machining axis. Gears in an enclosed oil bath connect the drive system to the motor. Travel surfaces on the head are in cast-in and PTFE ground and scraped. Machine electrics have been modified offering greater machining performance and flexibility as well as incorporating improved technology: automatic longitudinal and horizontal pre-programmed and reversible slot machining and automatic rotation of turntable for any required slot depth and diameter. tool lift obtained by alternating table movements; once the pre-programmed slot depth has been reached, in automatic the machine performs a number of pre-programmed finishing strokes and the ram stops in position Z- and the workpiece table in automatic returns to machining start cycle position.
