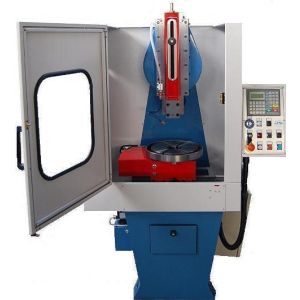

NC slotting machine 300M 2ACT

automatic3-axis

Pre-programmed and reversible longitudinal machining and tool lift obtained by alternating table movement. Once the pre-programmed slot depth has been reached, in automatic the machine performs a number of finishing strokes and the ram stops in its top position and the workpiece table in automatic returns to machining start cycle position. Electronic turntable with central through hole and with possibility of programming 1500 symmetrical and 99 asymmetrical divisions. 20° tilting head (in both directions). Inverter controlled variable stepless slotting speed with potentiometer incorporated in the control panel. The machine incorporates an electro-pump for the tool cooling system and automatic timer controlled pump for ram and trolley lubrication. Maintenance tools and machine instruction manual are provided. Machine designed and manufactured to EC standards and directives.
