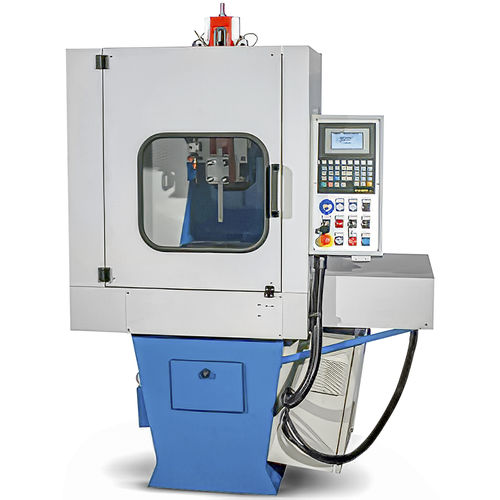

NC slotting machine 350 2AC

2-axis

Automatic longitudinal and horizontal pre-programmed and reversible slot machining for any required slot depth and diameter. Tool lift obtained by alternating table movements. Once the pre-programmed slot depth has been reached, in automatic the machine performs a number of finishing strokes and the ram stops in its top position and the workpiece table in automatic returns to machining start cycle position. Workpiece table with central through hole to floor. Possibility of tilting head 20° in both directions. Inverter controlled variable stepless slotting speed with potentiometer incorporated in the control panel. The machine incorporates an electro-pump for the tool cooling system and automatic timer controlled pump for ram and trolley lubrication. Maintenance tools and machine instruction manual are provided. Machine designed and manufactured to EC standards and directives.
