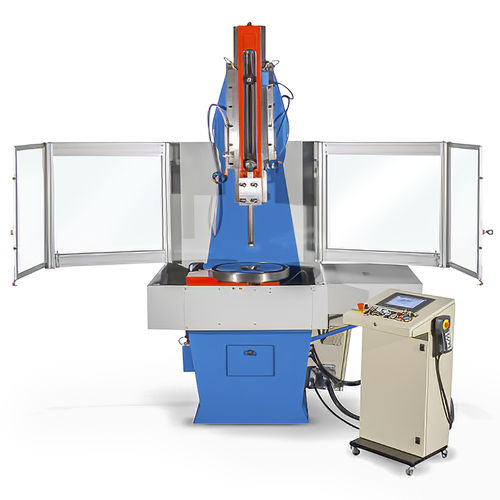

NC slotting machine 350 4AC

4-axisrotating table

Automatic longitudinal and horizontal pre-programmed and reversible slot machining and automatic rotation of turntable for any required slot depth and diameter. Tool lift obtained by alternating table movements. Once the pre-programmed slot depth has been reached, in automatic the machine performs a number of finishing strokes and the ram stops in its top position and the workpiece table in automatic returns to machining start cycle position. Electronic turntable with central through hole to floor with possibility of programming 1500 symmetrical and 999 asymmetrical divisions. Possibility of machining specific trapezoidal, circular and linear slots. The incorporated NC technology provides a user friendly operator / machine interface, the operator can call up data on the 10.4 " colour monitor utilising the keypad. The operator can store different machining programmes with zero workpiece position. The NC system can store up to 100 programmes. This model also incorporates the traditional ram drive assembly consisting of a NC controlled piston transforming the ram axis into a NC machining axis for machining front conical slots and for running programmes in sequence in automatic with different machining speeds. The software offers the following standard applications: • slot repeat: this function is for repeating slot machining without having to proceed with machine setup. • incremental tool lift: with this function enabled the tool is completely raised out of the slot when the ram returns and returns to zero workpiece position.
