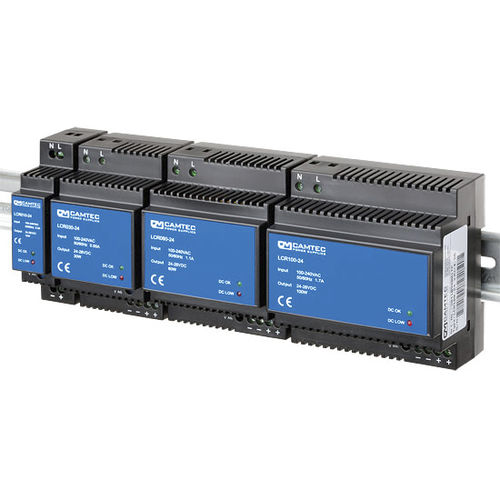

AC/DC power supply LCR series switchingsingle-phaseDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Technology
- switching
- Network
- single-phase
- Mounting
- DIN rail
- Input voltage
Max.: 240 V
Min.: 100 V
- Output voltage
24 V
- Current
Max.: 4.2 A
Min.: 1.25 A
- Power
Max.: 100 W
Min.: 10 W
Description
Model - LCR010.24 - LCR030.24 - LCR060.24 - LCR100.24
Nominal Power - 10W - 30W - 60W - 100W
AC Nominal Input - 100... 240Vac
AC Input Voltage - 90... 264Vac
DC Input Voltage - 140... 340Vdc
AC Frequency - 47... 63Hz
Hold-Up Time - 90ms - 160ms - 80ms - 80ms
Inrush Current - 41A - 41A - 81A - 52A
Start - softstart
Output Voltage - 24V - 24V - 24V - 24V
Adjust Range - 24 ... 28V - 24 ... 28V - 24 ... 28V - 24 ... 28V
Ripple P-P - 7mV - 7mV - 7mV - 8mV
