RF connector BCP series

BNCcrimpinsulation

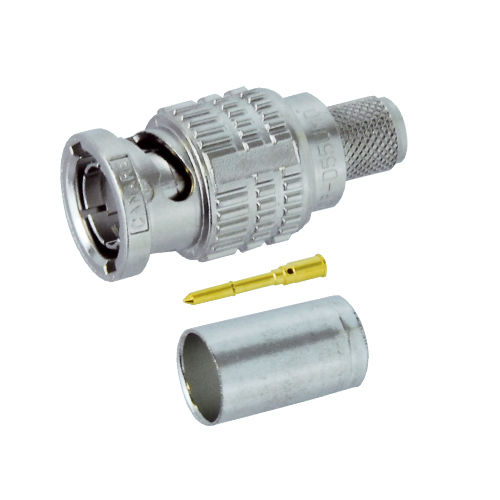

Canare added the new BCP-D series for 12G-SDI. SMPTE ST 2082-1 fully compliant connector makes UHD solutions as simple as existing SDI systems. The world’s highest quality BNC includes BCP-B for 3G-SDI, BCP-A/C for up to HD. • Our unique elongated body design enables easy attachment and removal. • Gold plating on the contact pin prevents deterioration, even after years of use. • Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin. Note1: Be sure to use Canare Crimp Tool. Note2: For crimping instructions, please refer to product web page or the instruction manual. BCP-D Series • Our highest performance BNC plug newly developed for 12G-SDI • Sufficient margin against SMPTE standard. • Return Loss: 20 dB @ 6 GHz, 15 dB @ 12 GHz • The BCP-D series takes over features from Canare's BNC connectors, such as the elongated body design and the snap locks center pin. • Canare crimp design ensures quick and reliable installation. BCP-B Series • Return Loss:@26.4dB@3GHz BCP-A Series • Return Loss:@26.4dB@2GHz、20.8dB@3GHz(*1) • Canare crimp design ensures quick and reliable installation • Gold plated “snap locks” center pin and beryllium copper outer contact. • Elongated body design for stable finger grip. • Position mark on the body makes it easier to check if the connector is locked. BCP-C Series • Return Loss:@26.4dB@2GHz (*2) (*2): Excluding BCP-C1 BCP-LC Series (Right Angle) • Return Loss:@26.4dB@2GHz • Canare crimp design ensures quick and reliable • Gold plated “snap locks” center pin and beryllium copper outer contact.
