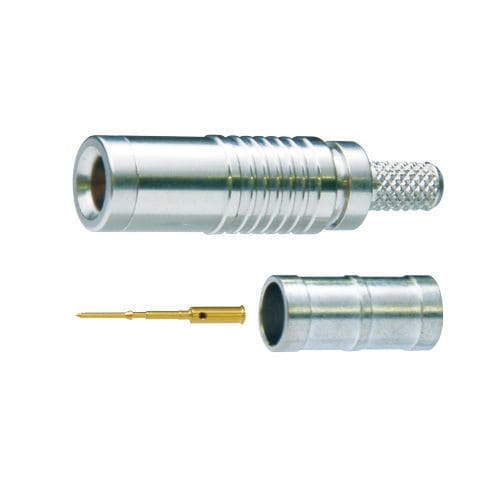

DIN electrical connector DC seriesright-anglecrimphigh-density
Add to favorites
Compare this product
Characteristics
- Format
- DIN
- Shape
- right-angle
- Connection type
- crimp
- Electrical characteristics
- high-density
- Material
- copper
- Product applications
- sleeve
- Other characteristics
- compact, panel-mount
- Impedance
75 Ohm
Description
Mini coax connectors IEC61169-29 and DIN 47 297 compatible.
• True 75 ohm.
• Gold plated beryllium copper center contact.
• The compact design allows for dense packaging, ideally suited for applications where space is limited.
• Our unique ball-locking mechanism offers smooth and reliable mating.
• Canare crimp design ensures quick and reliable installation.
• Elongated body design enables stable finger grip.
• Return loss: 20.8 dB or greater up to 3 GHz
• Extraction tool : BET-DIN or BET-D/H
• Compact design ideal for high density mounting and downsizing devices.
• Combination of DCJ-LR/1 and DCJFEM is effective for staggered arrangement.
• Return loss: 20.8 dB or greater up to 3 GHz.
