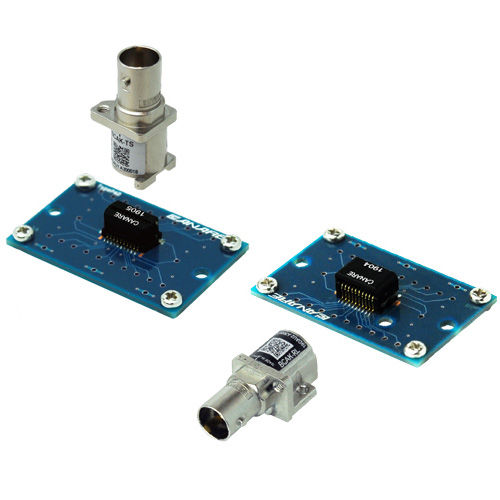

BNC electrical connector BCAK series

dataPCBSMT

12G-SDI Active BNC integrating I/O interface device inside. It frees you from struggling with PCB design coping with return loss and board space. • Assembled on a PC board with SMT Card Edge Connector. The pluggable 2-piece structure improves productivity and replaceability. *Card Edge Connector sold separately • Supports 12G/6G/3G/HD/SD-SDI • Reduce entire development cost as wel as development period. • 16 mm: Minimum pitch between adjacent connectors • Straight models can be mounted on the same board at the same height as 3G-SDI Active BNC. • PIN control: status monitoring and mode change • Command control for optimization and characterization • Cable driver and equalizer with reclocker • TX/RX/BiDi identification by insulation color • Card Edge Connector for BCAK • Same footprint for TX, RX and BiDi • Applicable for reflow soldering
