Three-phase motor 3SIE90S6
induction400 V380 V

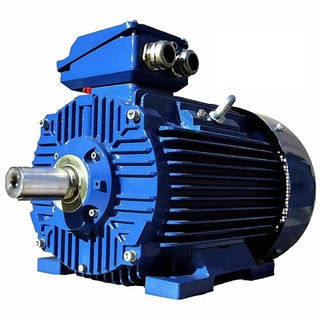

Three-phase motor - 3SIE90S6 - Cantoni Motor - induction / 400 V / 380 V
Three-phase motor - 3SIE90S6 - Cantoni Motor - induction / 400 V / 380 V
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V, 380 V, 460 V, 230 V, 220 V, 265 V, 690 V, 660 V, 795 V
Protection class
IP55
Configuration
aluminum, squirrel-cage rotor
Efficiency classes
IE3
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial, for pump, for conveyors, for fans, for crane, for washing machines
Other characteristics
IEC, low-noise, low-vibration, standard
Power

750 W
(1.02 hp)

Intensity

2 A, 3.4 A

Torque

7.6 Nm
(5.60547 ft.lb)

Rotational speed

940 rpm
(5,906.19 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.4 Winding connection ∆/Y Starting current ratio [ 4.3 Frequency [Hz] 50 Efficiency at 1/4 of full load Efficiency at 2/4 of full load [ 72.2% Rated output [HP] 1.0 Efficiency at 3/4 of full load [ 79.3% Service factor [ 1.0 Efficiency at rated (full) load [ 78.9% Duty S1 Efficiency at 5/4 of full load Power factor at 1/4 of full load Synchronous speed [rpm] 1000 Power factor at 2/4 of full load [ 0.47 Rated speed [rpm] 940 Power factor at 3/4 of full load [ 0.61 Power factor at rated (full) load [ 0.70 Starting torque ratio [ 1.7 Power factor at 5/4 of full load Sound pressure level [dB] 50 Frame size 90 Sound power level [dB] 62 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes
